XAG P150 Max Starter 7KW 2B2C Kit
XAG P150 Max Starter 7KW 2B2C Kit

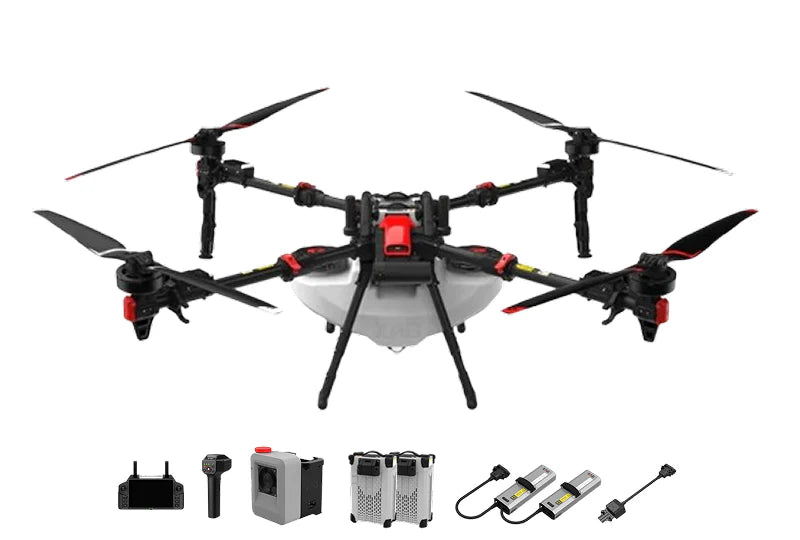

XAG P150 Max Starter 7KW 2B2C Kit Agricultural Spray Drone
Configuration:
- 1x XAG P150 Max Agricultural Drone with RevoSpray 5 (SKU: 09-007-00158)
- 2x B141050 Smart SuperCharge Batteries (20000mAh) (SKU: 09-017-00083)
- 2x CM13600S Smart Chargers (3400W) (SKU: 09-017-00069)
- 1x XAG 2024 Battery Cooling Tower (SKU: 09-017-00065)
- 1x XAG 6kW Parallel Charging Kit (SKU: 05-002-02311)
- 1x XAG SRC5 Smart Remote Controller (SKU: 09-016-00085)
- 1x XRTK7 Mobile Station (RTK Rover) (SKU: 09-016-00083)
- Ultra-Precise RTK Positioning - ±10cm accuracy
- 4D Radar Obstacle Avoidance - 360° protection
- Large 80L Spray Capacity - Extended operation time
- 14.5 Hectares/Hour Efficiency - Maximum productivity
- Dual Pump System - 32 L/min total flow rate
- Advanced Terrain Following - Automatic height adjustment
- Long Flight Time - 20 min hovering (no-load)
- Heavy Payload Capacity - Up to 136kg takeoff weight
- Multi-Battery System - Continuous field operations
- Dual Remote Controller Options - Flexibility for all users
- Smart App Control - Comprehensive operation management
- Multi-Field Capability - Up to 10 fields in one session
- All-Weather Design - IPX6K waterproof rating
- Cloud Connectivity - Real-time data and updates
- Professional Build Quality - Aerospace-grade materials
Aerial Platform
| Parameter | Details |
|---|---|
| Dimensions (Unfolded) | 3250 × 3254 × 765 mm (with RevoSpray 5) |
| Dimensions (Folded) | 1798 × 1807 × 765 mm (propellers folded) |
| Empty Weight | 56-60 kg (depending on module) |
| Max Takeoff Weight | 136 kg (spraying) / 140 kg (spreading) |
| Diagonal Wheelbase | 2335 mm |
| Protection Rating | IPX6K |
| Max Flight Speed | 20 m/s |
| Hovering Precision (RTK) | ±10 cm horizontal/vertical |
Propulsion & Spraying System
| Motors | 4 × 4850 W rated power |
| Propellers | 63-inch foldable carbon fiber |
| Spray Tank | 80 L / 80 kg payload |
| Flow Rate | Up to 32 L/min (dual pumps) |
| Droplet Size | 60-500 μm |
| Spray Width | 5-10 m |
Spreading & Sensing Systems
| Granule Container | 115 L / 80 kg max load |
| Spread Rate | Up to 300 kg/min |
| Spread Width | 5-9 m |
| 4D Radar | 1.5-100 m detection, ±40° horizontal FOV |
| FPV Camera | 1080p 30 fps, wide-angle |
Power & Control
| Battery | B141050 (1050 Wh, 20000 mAh) |
| Charge Time | 7 minutes (parallel supercharge) |
| Remote Controller | SRC5 (7-inch screen, 8-hour battery, 2 km range) |
Note: Performance may vary based on the environment. Always follow local regulations. Contact for demos or customization.
- Ultra-Precise RTK Positioning - ±10cm accuracy
- 4D Radar Obstacle Avoidance - 360° protection
- Large 80L Spray Capacity - Extended operation time
- 14.5 Hectares/Hour Efficiency - Maximum productivity
- Dual Pump System - 32 L/min total flow rate
- Advanced Terrain Following - Automatic height adjustment
- Long Flight Time - 20 min hovering (no-load)
- Heavy Payload Capacity - Up to 136kg takeoff weight
- Multi-Battery System - Continuous field operations
- Dual Remote Controller Options - Flexibility for all users
- Smart App Control - Comprehensive operation management
- Multi-Field Capability - Up to 10 fields in one session
- All-Weather Design - IPX6K waterproof rating
- Cloud Connectivity - Real-time data and updates
- Professional Build Quality - Aerospace-grade materials
Built to Last
The robust industrial design features a low-drag airframe that reduces energy use while enhancing performance.
Flexible Impeller Pumps
Each pump delivers a maximum flow of 16 L/min and features a chemical-resistant impeller, which extends the service life to over 300 hours and reduces the need for frequent replacements.
Smart Liquid Tank
The liquid level sensor features a capillary pneumatic design that accurately detects remaining chemical volume.
XAG RevoSpray5
Equipped with an 80‑liter tank and capable of speeds up to 20 m/s, the P150 Max sets a new standard for precise and efficient spraying. With greater coverage per flight and fewer refills, it enhances productivity in large-field operations. The four-rotor design generates a powerful downdraft that drives droplets through dense canopies for uniform coverage, making high-volume spraying in orchards more effective than ever.
XAG SuperX 5 Ultra Intelligent Control System
The Super Brain That Thinks Ahead
A wide-angle FPV camera works with AR overlays to display real-time 3D markers for obstacles and their distances. The drone automatically hovers when anomalies are detected, ensuring safe takeoff and landing.
Easy-to-Use, Fully in Control
XAG SRC 5 Smart Remote Controller
Rapid Charging, Less Downtime
Two battery sets keep operations running continuously, even in the hottest summer.
