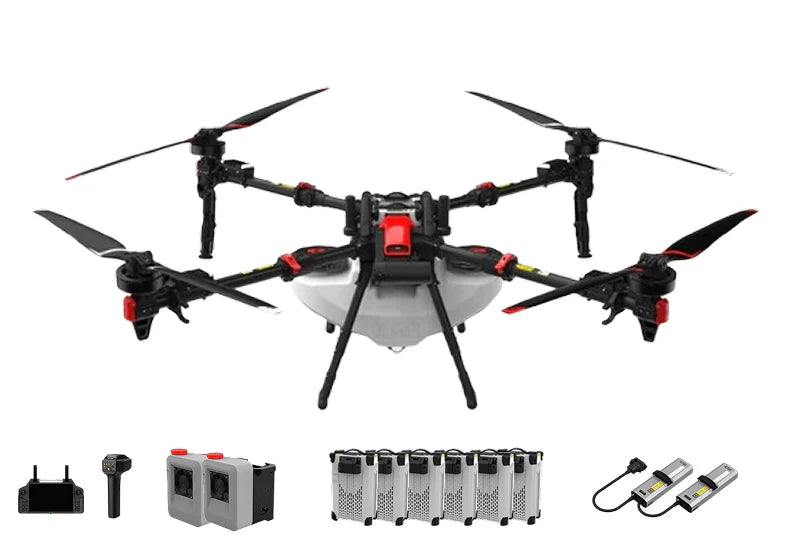

XAG P150 Max Standard 21 Gal Agricultural Spray Drone - 6 Batteries, 2 Chargers Package
Configuration:
- Payload & Tank: 80 kg max, 80 L (21 Gal) spray tank
- Included: 6 × B141050 Batteries, 2 × Chargers, Full Package
- RevoSpray 5: Up to 46 L/min flow, adjustable droplets
- Autonomy: SuperX 5 Ultra control, 4D radar
- Durability: IPX6K, aluminum frame
The XAG P150 Max is the world's most powerful agricultural drone, delivering unmatched efficiency for large-scale operations. With an 80 kg payload, 80 L spray tank, 115 L spreading container, and a maximum flight speed of 20 m/s, it excels in autonomous spraying, spreading, field mapping, and material transport. Built with advanced intelligence, robust durability (IPX6K rating), and rapid charging, it's ideal for demanding field conditions across crops like corn, rice, cotton, citrus, and more.
Key Systems & Features
- XAG RevoSpray 5: 80 L smart liquid tank, up to 46 L/min flow rate (dual pumps), centrifugal nozzles with 60-500 μm droplets, 5-10 m spray width
- Onboard XAG RealTerra: Maps up to 20 ha per flight, HD imaging, auto obstacle detection, 3D terrain preview.
- SuperX 5 Ultra Control: 4D radar (1.5-100 m detection), map-free 3D flight, PPP-AR centimeter accuracy, AI assistance with AR overlays.
- B141050 Battery: 1050 Wh, 7-minute supercharge (with parallel kit), up to 1500 cycles.
- Durability: Foldable design, aluminum alloy frame, fully washable (IPX6K).
Full Technical Specifications
Aerial Platform
| Parameter | Details |
|---|---|
| Dimensions (Unfolded) | 3250 × 3254 × 765 mm (with RevoSpray 5) |
| Dimensions (Folded) | 1798 × 1807 × 765 mm (propellers folded) |
| Empty Weight | 56-60 kg (depending on module) |
| Max Takeoff Weight | 136 kg (spraying) / 140 kg (spreading) |
| Diagonal Wheelbase | 2335 mm |
| Protection Rating | IPX6K |
| Max Flight Speed | 20 m/s |
| Hovering Precision (RTK) | ±10 cm horizontal/vertical |
Propulsion & Spraying System
| Motors | 4 × 4850 W rated power |
| Propellers | 63-inch foldable carbon fiber |
| Spray Tank | 80 L / 80 kg payload |
| Flow Rate | Up to 32 L/min (dual pumps) |
| Droplet Size | 60-500 μm |
| Spray Width | 5-10 m |
Spreading & Sensing Systems
| Granule Container | 115 L / 80 kg max load |
| Spread Rate | Up to 300 kg/min |
| Spread Width | 5-9 m |
| 4D Radar | 1.5-100 m detection, ±40° horizontal FOV |
| FPV Camera | 1080p 30 fps, wide-angle |
Power & Control
| Battery | B141050 (1050 Wh, 20000 mAh) |
| Charge Time | 7 minutes (parallel supercharge) |
| Remote Controller | SRC5 (7-inch screen, 8-hour battery, 2 km range) |
Note: Performance may vary based on the environment. Always follow local regulations. Contact for demos or customization.
- Ultra-Precise RTK Positioning - ±10cm accuracy
- 4D Radar Obstacle Avoidance - 360° protection
- Large 80L Spray Capacity - Extended operation time
- 14.5 Hectares/Hour Efficiency - Maximum productivity
- Dual Pump System - 32 L/min total flow rate
- Advanced Terrain Following - Automatic height adjustment
- Long Flight Time - 20 min hovering (no-load)
- Heavy Payload Capacity - Up to 136kg takeoff weight
- Multi-Battery System - Continuous field operations
- Dual Remote Controller Options - Flexibility for all users
- Smart App Control - Comprehensive operation management
- Multi-Field Capability - Up to 10 fields in one session
- All-Weather Design - IPX6K waterproof rating
- Cloud Connectivity - Real-time data and updates
- Professional Build Quality - Aerospace-grade materials
Built to Last
The robust industrial design features a low-drag airframe that reduces energy use while enhancing performance.
Flexible Impeller Pumps
Each pump delivers a maximum flow of 16 L/min and features a chemical-resistant impeller, which extends the service life to over 300 hours and reduces the need for frequent replacements.
Smart Liquid Tank
The liquid level sensor features a capillary pneumatic design that accurately detects remaining chemical volume.
XAG RevoSpray5
Equipped with an 80‑liter tank and capable of speeds up to 20 m/s, the P150 Max sets a new standard for precise and efficient spraying. With greater coverage per flight and fewer refills, it enhances productivity in large-field operations. The four-rotor design generates a powerful downdraft that drives droplets through dense canopies for uniform coverage, making high-volume spraying in orchards more effective than ever.
XAG SuperX 5 Ultra Intelligent Control System
The Super Brain That Thinks Ahead
A wide-angle FPV camera works with AR overlays to display real-time 3D markers for obstacles and their distances. The drone automatically hovers when anomalies are detected, ensuring safe takeoff and landing.
Easy-to-Use, Fully in Control
XAG SRC 5 Smart Remote Controller
Rapid Charging, Less Downtime
Two battery sets keep operations running continuously, even in the hottest summer.
